Details

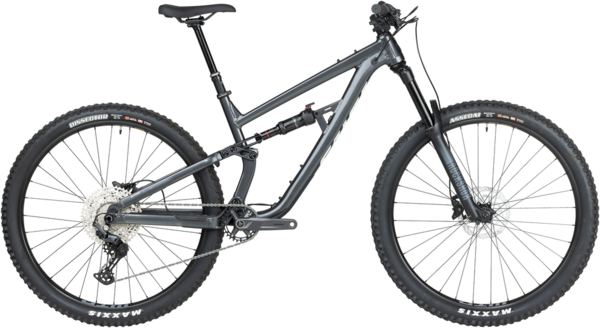

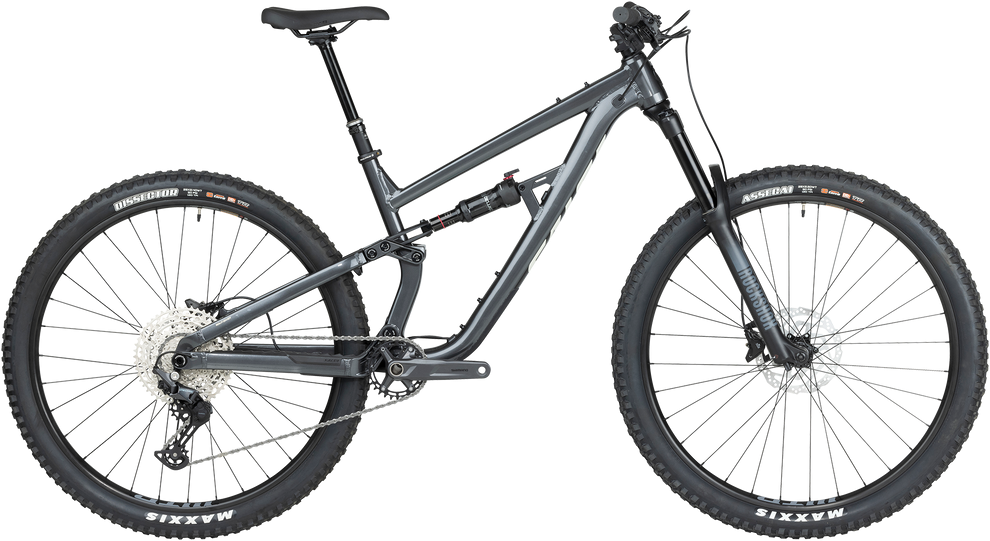

Salsa Blackthorn Deore brings together performance and adventure. The aluminum frame is stiff enough to keep you on your line and durable enough to toss in a truck bed for shuttling. Our progressive geometry and Split Pivot suspension design offer a well-balanced platform for pedaling, descending, and taking on technical features. A 140 mm RockShox Super Deluxe Select shock and 160 mm RockShox 35 Gold RL fork ensure plenty of travel for gnarly drops, gaps, and other features. On-bike cargo features like a down tube strap, top tube mounts, and a bottle mount let you keep the weight of your ride gear down low on the frame so you’re free to move your body without the burden of a pack. With Shimano’s robust Deore 1 x 12 drivetrain backing you up, you’ll find very few limits out there. Blackthorn Deore is the 29er all-mountain bike for big rides on diverse terrain.
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
A. Effective Top Tube | 594- 593 | 616- 615 | 640- 639 | 663- 662 |
B. Stand Over | 726- 728 | 729- 732 | 730- 733 | 730- 733 |
C. Reach | 448- 451 | 469- 472 | 490- 493 | 510- 514 |
D. Stack | 611- 609 | 615- 613 | 624- 622 | 633- 630 |
E. Total Seat Tube Length | 405 | 430 | 455 | 480 |
F. Headtube Length | 95 | 100 | 110 | 120 |
G. Headtube Angle | 64.6-64.9 | 64.6-64.9 | 64.6-64.9 | 64.6-64.9 |
H. Seat Tube Angle | 76.5-76.8 | 76.5-76.8 | 76.5-76.8 | 76.5-76.8 |
I. BB Drop | 26- 22 | 26- 22 | 26- 21 | 26- 21 |
K. Chainstay Length | 432- 431 | 432- 431 | 432- 431 | 432- 431 |
L. Fork Length Axle to Crown | 569 | 569 | 569 | 569 |
M. Fork Offset | 43 | 43 | 43 | 43 |
N. Wheelbase | 1204- 1204 | 1228- 1227 | 1253- 1252 | 1278- 1278 |
Crank Arm Length | 165 | 170 | 170 | 175 |
Handlebar Width | ||||
Recommended Rider Height | 165 - 173 | 173 - 180 | 180 - 188 | 188 |
Stem Length | 50 | 50 | 50 | 50 |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
Frame | Blackthorn Alloy V1 |
---|---|
Fork | RockShox 35 Gold RL, 160 mm, 44 mm offset |
Rear Shock | RockShox Super Deluxe Select OR RockShox Deluxe Select+ |
Wheels | Front Wheel: Shimano MT400-B 15 x 110 mm hub, WTB ST i30 29" rim/Rear Wheel: Shimano SLX M7130 12 x 157 mm hub, WTB ST i30 29" rim |
Tires | Front Tire: Maxxis Assegai 29 x 2.5", Maxx Grip/Maxx Terra, EXO+, TR/Rear Tire: Maxxis Dissector 29 x 2.4", Maxx Grip/Maxx Terra, EXO+, TR |
Crankset | Shimano MT512, 30t |
Shifters | Shimano Deore M6100 |
Cassette/Freewheel | Shimano Deore M6100, 10–51t, 12-speed |
Rear Derailleur | Shimano Deore M6100 SGS |
Rotors | Shimano RT10, Center Lock (180 mm) |
Headset | FSA Orbit 1.5E NO.57E ACB, ZS44/ZS56 |
Brake Levers | Shimano MT4100 |
Handlebars | Race Face Chester 35, 780 mm width |
Chain | Shimano Deore M6100 |
Tape/Grips | Salsa File Tread Lock-on |
Stem | Salsa Guide Trail 50 mm |
Seatpost | TranzX YSI05, Shimano MT500 lever, 30 mm travel adjust (SM 125 x 409 mm, MD 150 x 459 mm, LG 170 x 499 mm, XL 200 x 559 mm) |
Saddle | WTB Volt 250 Steel, 250 x 135 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Dark Gray / Small / 29-inch | 657993315385 | 06-003560 | SAL49681066L |
Dark Gray / Medium / 29-inch | 657993315507 | 06-003560 | SAL50107914M |
Dark Gray / Large / 29-inch | 657993315620 | 06-003560 | SAL49755768E |
Dark Gray / X-Large / 29-inch | 657993315743 | 06-003560 | SAL50793546E |
