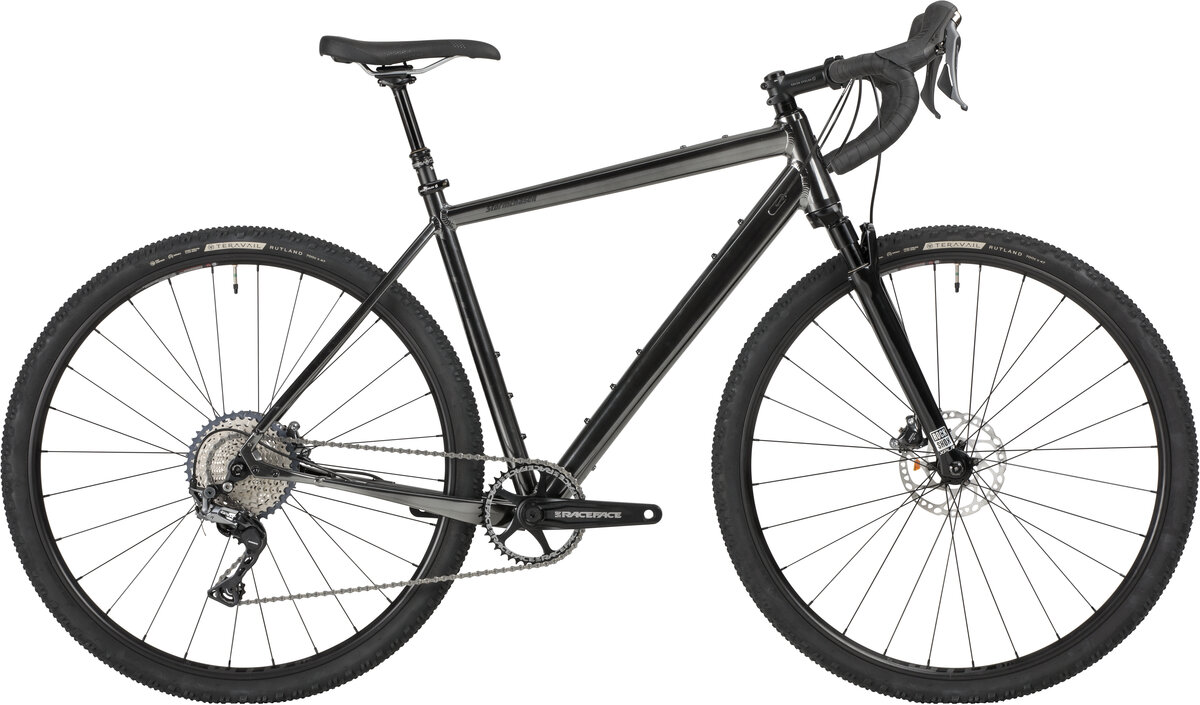

Salsa Stormchaser GRX

Salsa Stormchaser GRX
  • Color: Black
$3,549.00
Color: Black
Size: Select size
Please select options Unavailable

Details

Stormchaser is Salsa's gravel bike for any and all conditions. Ample tire clearance and the single speed-compatible Alternator Flat Mount dropout system will see you through the muddiest rides. Equipped with a suspension fork and dropper post, the Stormchaser GRX 810 1x SUS lets you get rowdy with your route choices.

Geometry

Geometry Chart:
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube (mm) 506 527 545 560 575 590 605
B. Stand Over (mm) 686.86 726.74 756.48 785.5 794.05 820.44 842.79
C. Reach (mm) 366.53 371.06 374.06 383.35 392.64 401.93 411.22
D. Stack (mm) 529.73 543.82 562.61 581.41 600.2 619 637.79
E. Total Seat Tube Length (mm) 390 440 475 510 520 545 570
F. Headtube Length (mm) 90 105 125 145 165 185 205
G. Headtube Angle 70° 70° 70° 70° 70° 70° 70°
H. Seat Tube Angle 75.25° 74° 73° 73° 73° 73° 73.1°
I. BB Drop (mm) 70 70 70 70 70 70 70
K. Chainstay Length (mm) 435–450 435–450 435–450 435–450 435–450 435–450 435–450
L. Fork Length Axle to Crown (mm) 420 420 420 420 420 420 420
M. Fork Offset (mm) 51 51 51 51 51 51 51
N. Wheelbase (mm) 1017.5–1032.2 1027.1–1041.9 1037–1051.8 1053.1–1067.9 1069.2–1084 1085.4–1100.2 1101.5–1116.3
Crank Arm Length (mm) 165 165 170 170 175 175 175
Handlebar Width (mm) 40cm 42cm 44cm 46cm 48cm 50cm 52
Recommended Rider Height (mm) 142cm–157cm 155cm–165cm 162cm–173cm 170cm–180cm 178cm–188cm 185cm–193cm 190cm–UP
Stem Length (mm) 60 70 80 90 90 100 110

Specs

Frame Stormchaser
Fork RockShox Rudy XPLR Base, 40mm, 51mm offset
Wheels WTB ST i25 TCS 2.0 29" rims
Hubs Shimano RS470 hubs
Axles 12 x 100mm front, 12 x 142mm rear
Tires Teravail Rutland 700c x 47mm, tubeless-ready, Durable casing
Crankset Race Face Ride, 38t
Shifters Shimano GRX RX810-LA
Rear Derailleur Shimano GRX RX812
Cassette/Freewheel Shimano SLX M7000, 11–42t, 11-speed
Chain Shimano HG601
Brakes Shimano GRX RX810 brakes, Shimano RT 64 rotors (Center Lock, 160mm)
Brake Levers Shimano GRX RX810-LA
Handlebars Salsa Cowchipper Deluxe
Tape/Grips XL anti-slip silicone tape
Stem Salsa Guide
Headset FSA No.42 ACB
Seatpost TranzX YSP38J, 90 x 360mm
Saddle WTB Volt Medium Steel SL
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / 49cm 657993283790 BK9692 SAL52722264M
Black / 52.5cm 657993283813 BK9693 SAL53858637M
Black / 54.5cm 657993283837 BK9694 SAL53721069M
Black / 56cm 657993283851 BK9695 SAL52288867M
Black / 57.5cm 657993283875 BK9696 SAL53729163M
Black / 59cm 657993283899 BK9697 SAL52428240M
Black / 61cm 657993283912 BK9698 SAL52591622M
