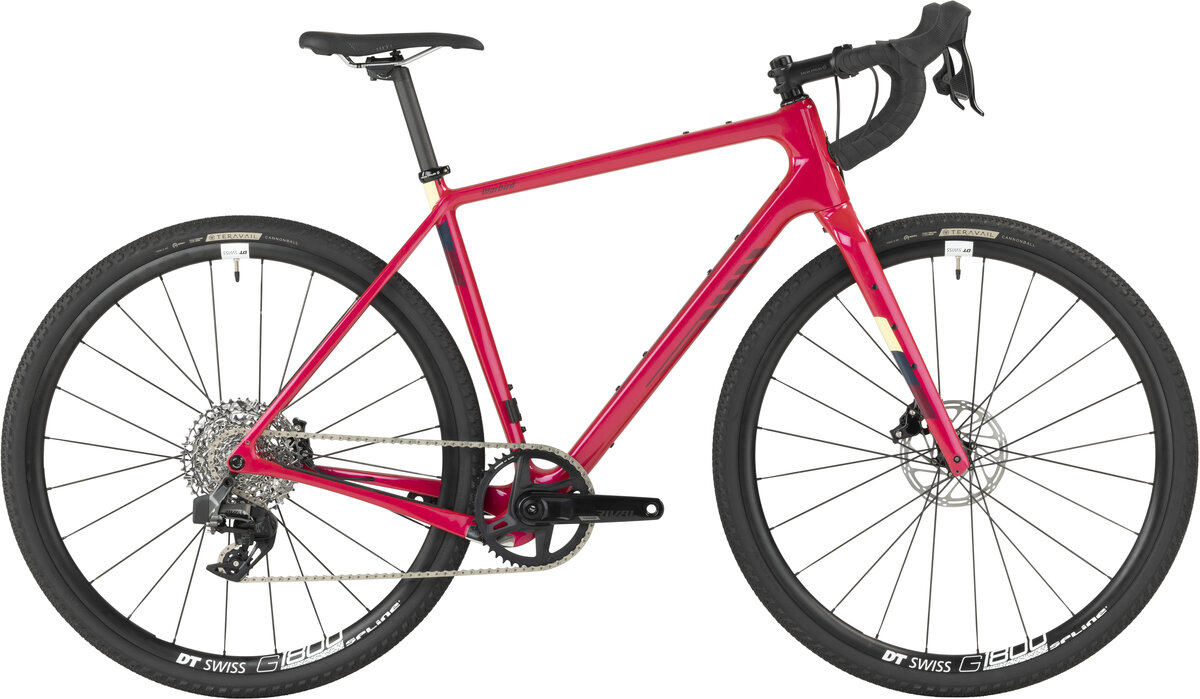

Salsa Warbird Carbon Rival XPLR eTap AXS

Salsa Warbird Carbon Rival XPLR eTap AXS
  • Color: Red
$4,399.93 - $5,499.00
$5,499.00
Color: Red
Size: Select size
Please select options Unavailable

Details

Warbird C Rival XPLR eTap AXS is built to tame the toughest terrain, with a Class 5 VRS-equipped high-modulus carbon fiber frameset. Our gravel race geometry puts you in a comfortable, confident riding position. On-bike cargo features let you gear up for long days of riding far from anywhere. SRAM's sure-shifting Rival XPLR eTap AXS drivetrain is a technological marvel with loads of gear range. As the industry's first gravel race bike, Warbird is designed and built to provide control, comfort, and speed when the going gets rough.

Geometry

Geometry Chart:
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube (mm) 499 525 545 560 575 590 610
B. Stand Over (mm) 670 714 744 770 786 808 831
C. Reach (mm) 359 367 371 380 390 399 407
D. Stack (mm) 521 550 569 588 607 626 644
E. Total Seat Tube Length (mm) 390 440 475 510 520 545 570
F. Headtube Length (mm) 90 120 140 160 180 200 220
G. Headtube Angle 70.5° 70.8° 70.8° 70.8° 70.8° 70.8° 70.8°
H. Seat Tube Angle 75° 74° 73° 73° 73° 73° 72.5°
I. BB Drop (mm) 70 70 70 70 70 70 70
K. Chainstay Length (mm) 430 430 430 430 430 430 430
L. Fork Length Axle to Crown (mm) 405 405 405 405 405 405 405
M. Fork Offset (mm) 50 50 50 50 50 50 50
N. Wheelbase (mm) 996 1012 1023 1038 1054 1070 1085
Crank Arm Length (mm) 165 175 180 180 180 180 180
Handlebar Width (mm) 380 400 420 440 460 460 460
Recommended Rider Height 142–157cm 155–165cm 162–173cm 170–180cm 178–188cm 185–193cm 190cm–UP
Stem Length (mm) 70 70 80 90 90 100 110

Specs

Frame Warbird Carbon
Fork Waxwing Deluxe
Wheels DT Swiss G 1800 12 x 100 mm front, 12 x 142 mm rear
Tires Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing
Crankset SRAM Rival 1 Wide, 42t
Shifters SRAM Rival eTap AXS
Rear Derailleur SRAM Rival XPLR AXS
Cassette/Freewheel SRAM XG-1251 10–44t, 12-speed
Chain SRAM Rival D1
Brakes SRAM Rival Hydraulic, SRAM CenterLine rotors (160 mm)
Handlebars Zoom DR-AL-199BTFOV -OR- Salsa Cowbell Deluxe
Tape/Grips Anti-Slip Silicone handlebar tape
Stem Zoom TDS-D507G, ±7 degrees -OR- Salsa Guide
Headset Cane Creek 40
Seatpost Zoom SP-C255 Alloy -OR- Salsa Guide Carbon
Saddle WTB SL8 Medium Cromoly SL
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red / 57.5cm 657993323533 BK6974 SAL47696980M
Red / 59cm 657993323670 BK6975 SAL46682285M
Red / 61cm 657993323816 BK6976 SAL46892382M
